Shaping machine PF45

Shaping Machine PF33 e PF45 Pizza Group

Shaping machine PF45

6.980,00  4.327,00

In stock

6.980,00  4.327,00

Dough weight:  250 ÷ 500 gr
Upper plate diameter: 45 cm
Lower plate diameter: 45 cm
Plates distance: 115 mm
Plates temperature: 130 ÷ 170 °C
Dimensions: 630x670x890h (mm)
Weight: 127 kg Power: 8,10 Kw
Power supply: 400V/3N/50Hz

SKU: PF45 Categories: , , , Marchio:
Clear
  • *Version

    Reset options

Description

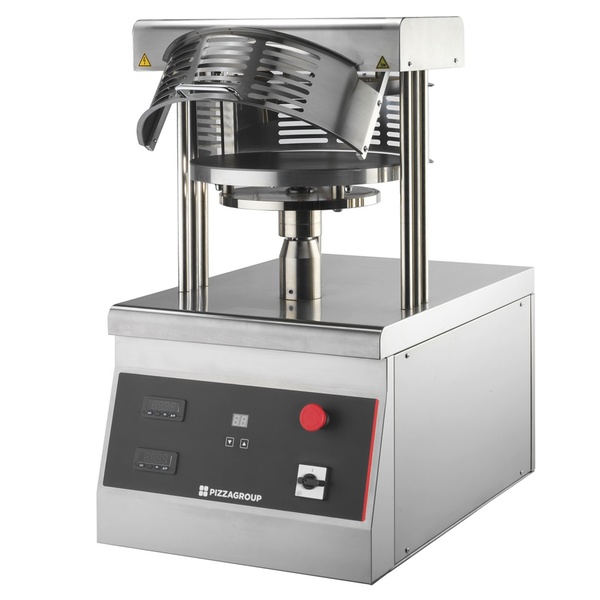

Shaping machine PF45

The Pizza Group shaping machine PF45 is ideal for forming pizza bases from 33 to 45 cm in diameter. These devices can be easily used by non-specialised operators, and have a steel structure equipped with all the safety devices foreseen by CE and RoHS standards.

All the machines are equipped with a ratiomotor, cam, stop timer and plates. The plates: – as they are made out of adhesive proof aluminum they have fast heating times that, together with a reduction in the set temperature from 150/170°C to 130°C due to a special surface treatment, permit significant energy savings; – this treatment makes it easy to slide the pizza disk; – the high quality of the dough is maintained due to the lower temperature; – due to their particular structure, disks of dough can be obtained with a traditional edge.

The distance between the plates ranges between 105 mm for the small ones (PF33) and 115 mm for the large ones (PF40-45).

The pressing time (from 0.1 to 1.5 sec) and the temperature (150°C-170°C) vary depending on the dough temperature (recommended between 6°C and 20°C).

The dough thickness can be easily adjusted by rotating the handle located under the lower plate. If the protective grid is removed, make sure to reassemble it correctly for proper machine operation, otherwise it may not restart.

Upon request, the machines can be produced with a 230V/50 Hz power supply and with an inverter operate always with a three-phase motor. The grid can be removed to make it easier and quicker to clean the plates after they have cooled down.

Technical specification:

Dough weight:  250 ÷ 500 gr
Upper plate diameter: 45 cm
Lower plate diameter: 45 cm
Plates distance: 115 mm
Plates temperature: 130 ÷ 170 °C
Dimensions: 630x670x890h (mm)
Weight: 127 kg Power: 8,10 Kw
Power supply: 400V/3N/50Hz

Additional information

Weight 150 kg
Dimensions 72 × 93 × 102 cm
Version

Version for pizza without edge, Version for pizza with edge
